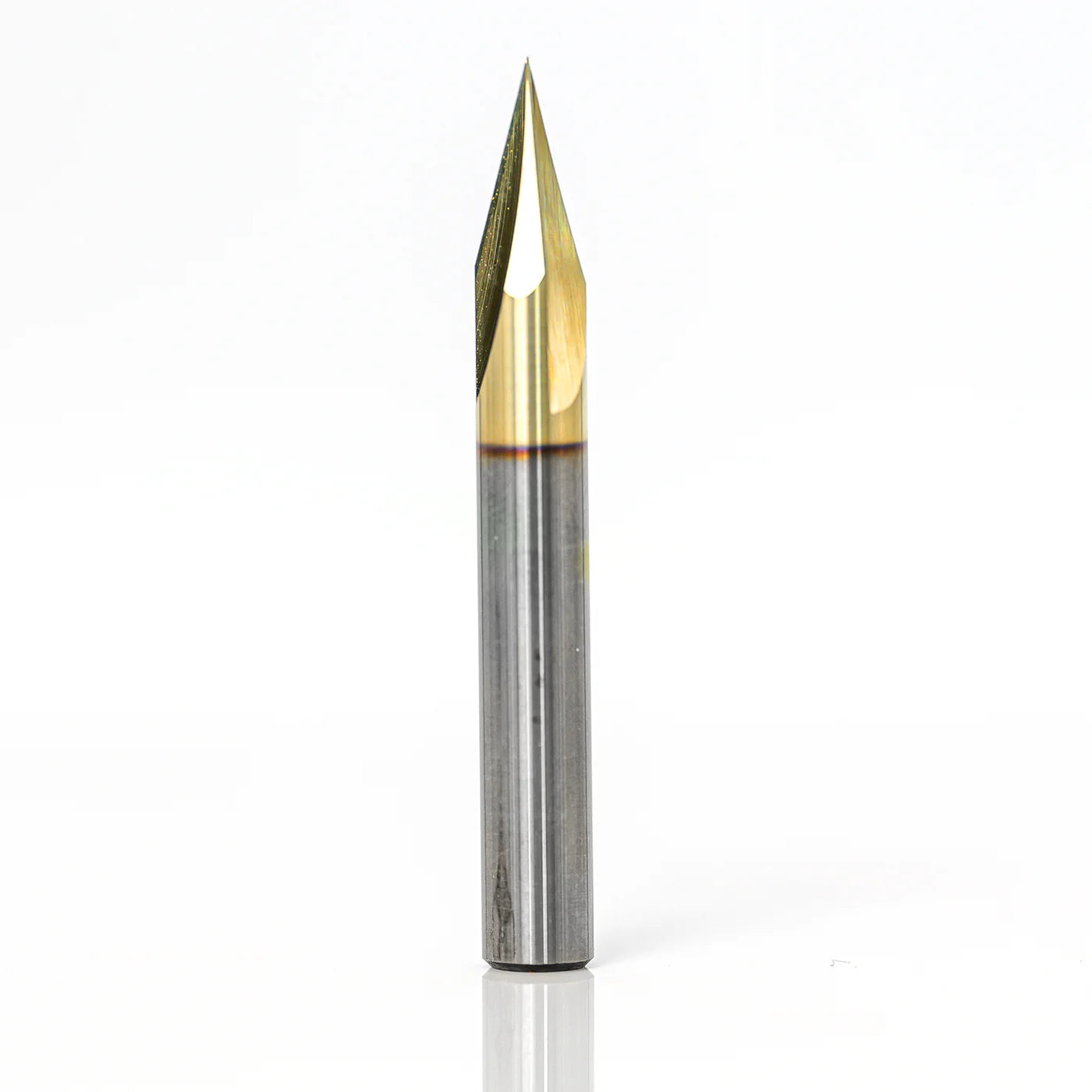

30 Deg V-Groove - 3-Flute - 1/4 Shank for CNC Routers

The 30° V-Groove bit is a true workhorse for engraving, V-carving, and precision inlay work. With its 3-flute design, it delivers a smooth, clean finish, making it perfect for detailed lettering, sign-making, and high-quality inlays in wood.

Bit Info

• Angle: 30 degrees
• Cutting Diameter: 1/4''
• Length of Cut: 7/16''
• Shank Size: 1/4''
• Flutes: 3
• Overall Length: 2''
• Material: Solid Carbide
• Coating: Zirconium Nitride (ZrN)

• Part #: VCS60

Recommended Feeds & Speeds

• Feedrate - 50 IPM
• Cut Depth Per Pass - .125 - .25"
• RPM's - 18,000

• Plunge Rate = 50% of Feed rate (ex: Feed rate=100 IPM, Plunge Rate=50 IPM)
• These Feed rates are recommended starting points, each CNC is different and feed rates will vary.
