3/4" Bowl and Tray - 5/8" Cutting Length - 1/4" Radius - 1/4" Shank

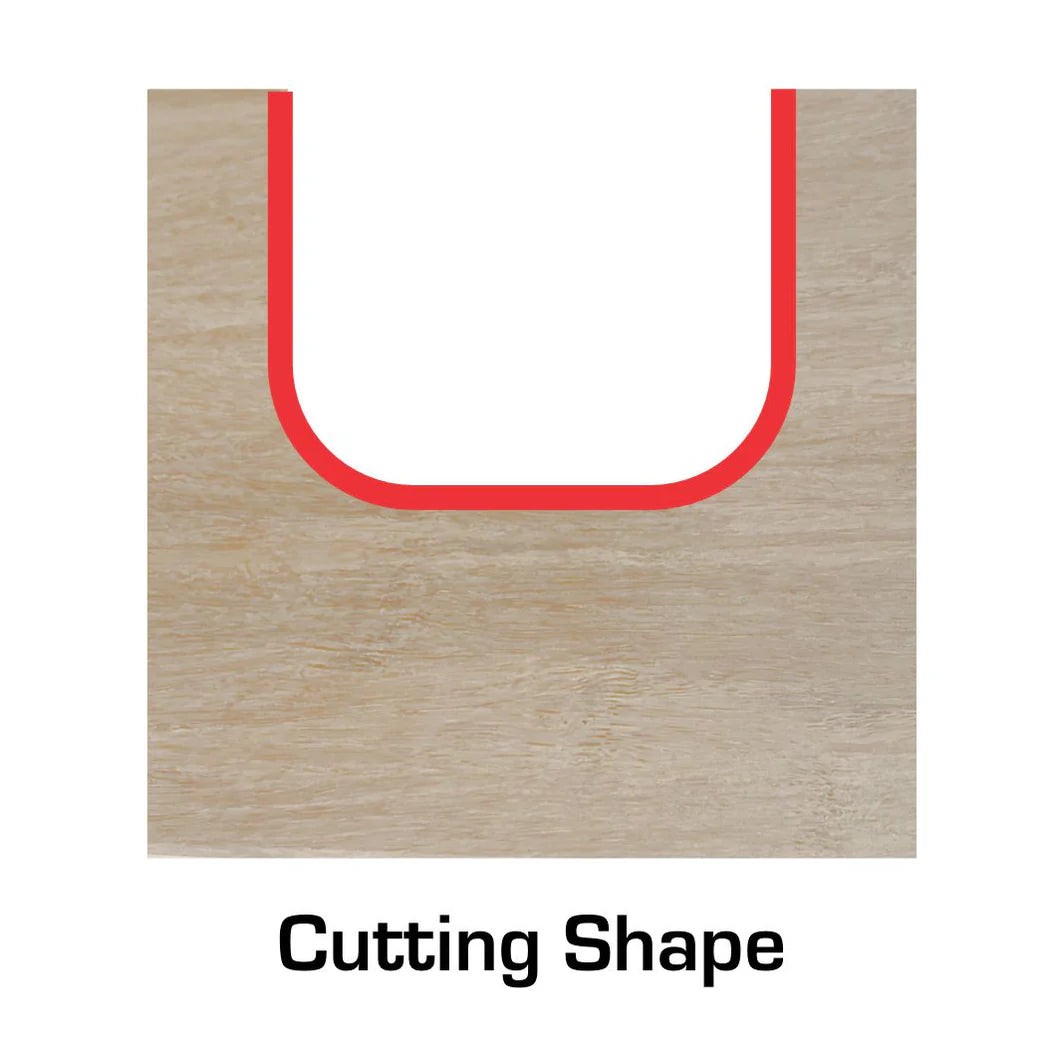

This bit is designed to pocket material for bowls and trays while leaving a smooth bottom finish. The radiused corners of this bit produce an edge inside the pocket that looks appealing and is also easy to clean with minimal sanding needed.

Bit Info

• Radius: 1/4''
• Cutting Diameter: 3/4''
• Length of Cut: 5/8''
• Shank Size: 1/4''
• Flutes: 2
• Overall Length: 2-3/8''
• Material: Carbide Tipped
• Part #: BT275

Recommended Feeds & Speeds

• Hobby CNC with Router - 40 IPM
• Hobby CNC with Spindle - 80 IPM
• Industrial CNC - 120 IPM
• Cut Depth Per Pass - .125"
• RPM's - 18,000
• Plunge Rate = 50% of Feed rate (ex: Feed rate=100 IPM, Plunge Rate=50 IPM)
• These Feed rates are recommended starting points, each CNC is different and feed rates will vary.
