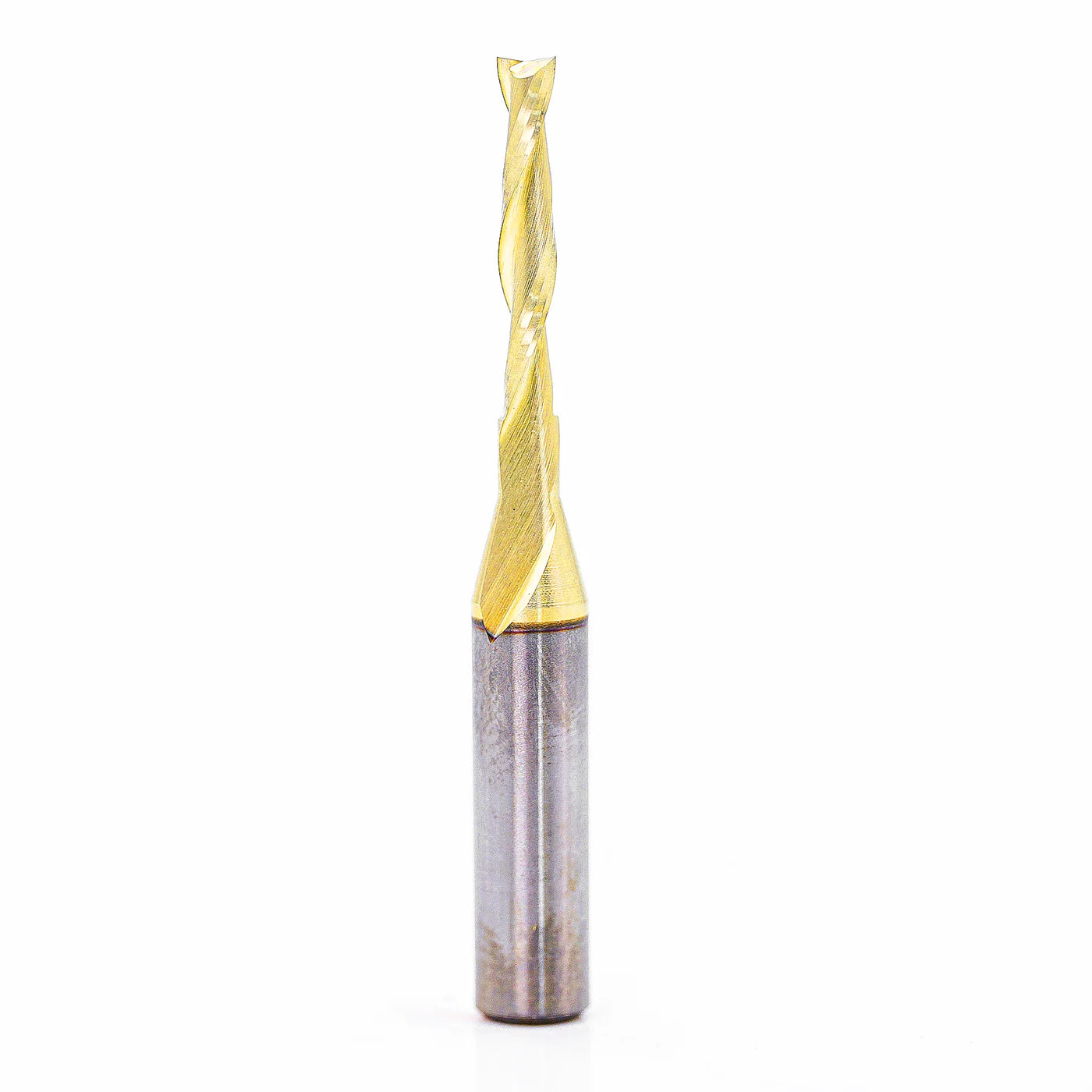

1/8" Upcut Endmill - 3/4" Cutting Length - 1/4" Shank for CNC Routers

Great for Profiling and cutting out small products and parts. With it's 1/8" cutting diameter and it's 1/4" shank it makes for easy tool changeouts with no need to change the collet.

Its 1/4" shank provides extra stability, making it a great choice for inlays, profiles, and pocketing in wood and other materials.

Bit Info

• Cutting Diameter: 1/8''
• Length of Cut: 3/4''
• Shank Size: 1/4''
• Flutes: 2
• Overall Length: 2.5''
• Rotation: Upcut
• Material: Solid Carbide
• Coating: Zirconium Nitride (ZrN)

• Part #: UC2175

Recommended Feeds & Speeds

• Hobby CNC with Router - 50 IPM
• Hobby CNC with Spindle - 70 IPM
• Industrial CNC - 70 IPM
• Cut Depth Per Pass - .125"
• RPM's - 18,000

• Plunge Rate = 50% of Feed rate (ex: Feed rate=100 IPM, Plunge Rate=50 IPM)
• These Feed rates are recommended starting points, each CNC is different and feed rates will vary.
